M-3H BOTTOM W/O LEG BURNER

M-3H BOTTOM W/O LEG BURNER

Categories Bottom Leg Burner, LPG Burners, LPG Burners & Components

Additional information

These burners are recommended to be used at a pressure of 0.3 kg/cm² (4.5 PSIG), however, this may be varied by ± 25% the heat output being varied accordingly.

Additional information

Model Number	M-3
Product Type	Heavy
Material	CAST IRON
Head Diameter	140	MM	5.500	INCH
Total Length	325	MM	12.800	INCH
Optimum Working Pressure	0.3	KG/CM3	4.5	PSIG
Consumption Per Hour	1.2	KGS	2.6	LBS
Rated Heat Output	15,000	KCAL/HR	60,000	BTU/HR
Gas	LPG / NATURAL GAS

Related Products

T- 22 S BURNER

LPG Burners, LPG Burners & Components, T – Burner

T – 35 U BURNER

LPG Burners, LPG Burners & Components, T – Burner

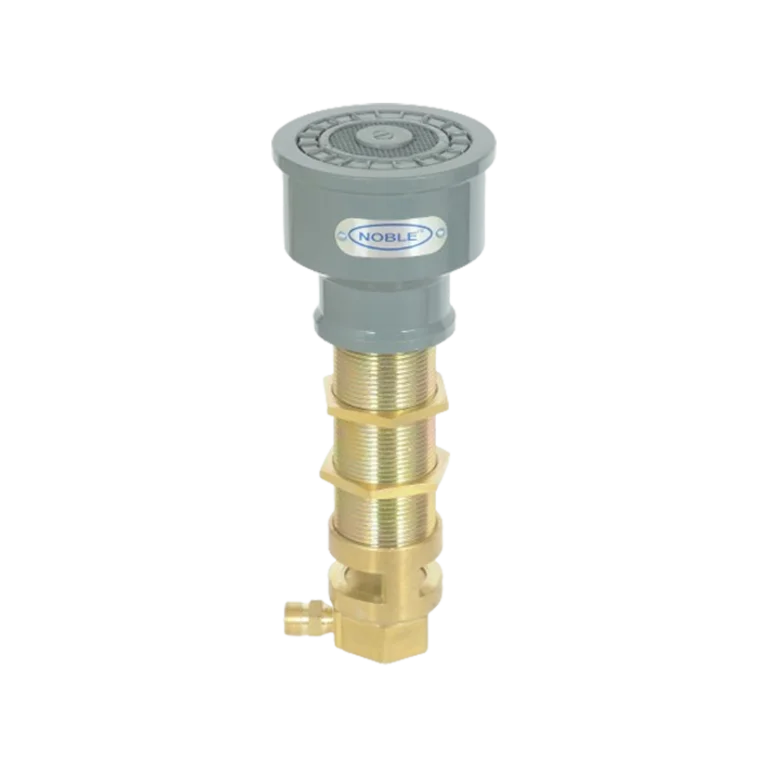

T – 50 BURNER

LPG Burners, LPG Burners & Components, T – Burner

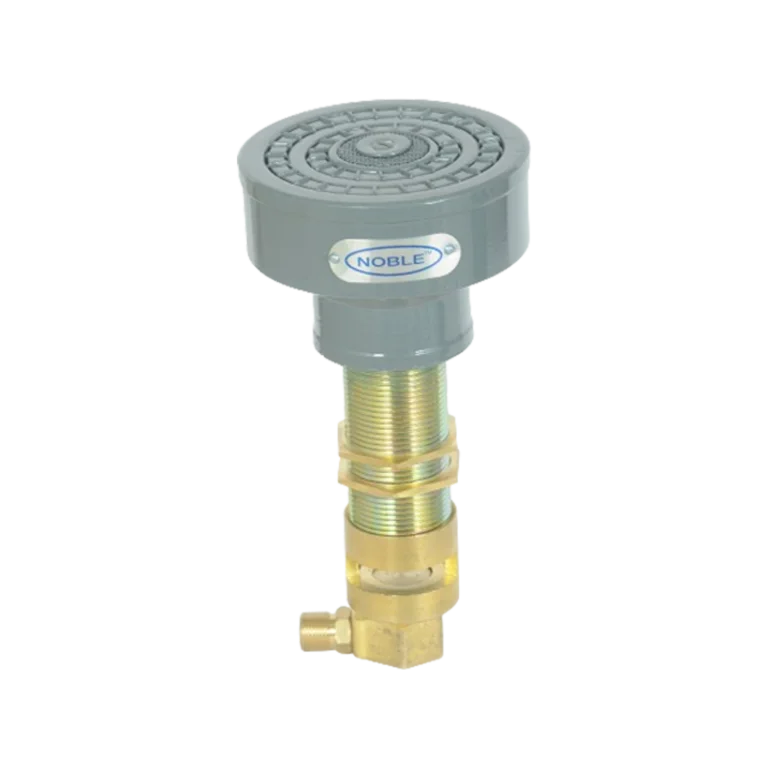

T – 65 BURNER

LPG Burners, LPG Burners & Components, T – Burner

T – 78 BURNER

LPG Burners, LPG Burners & Components, T – Burner

M-1H BOTTOM W/O LEG BURNER

Bottom Leg Burner, LPG Burners, LPG Burners & Components

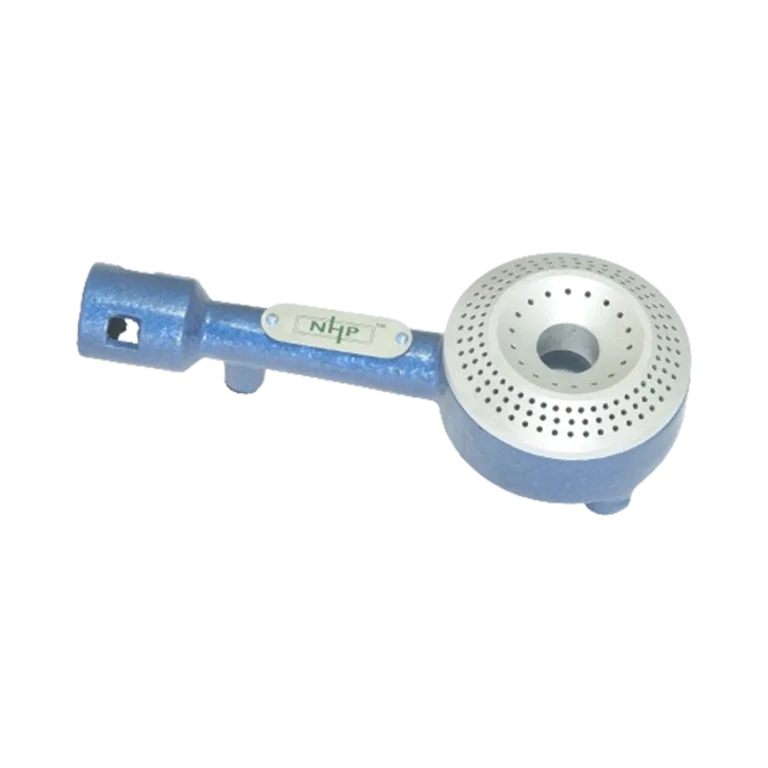

M-1M BOTTOM W/O LEG BURNER

Bottom Leg Burner, LPG Burners, LPG Burners & Components

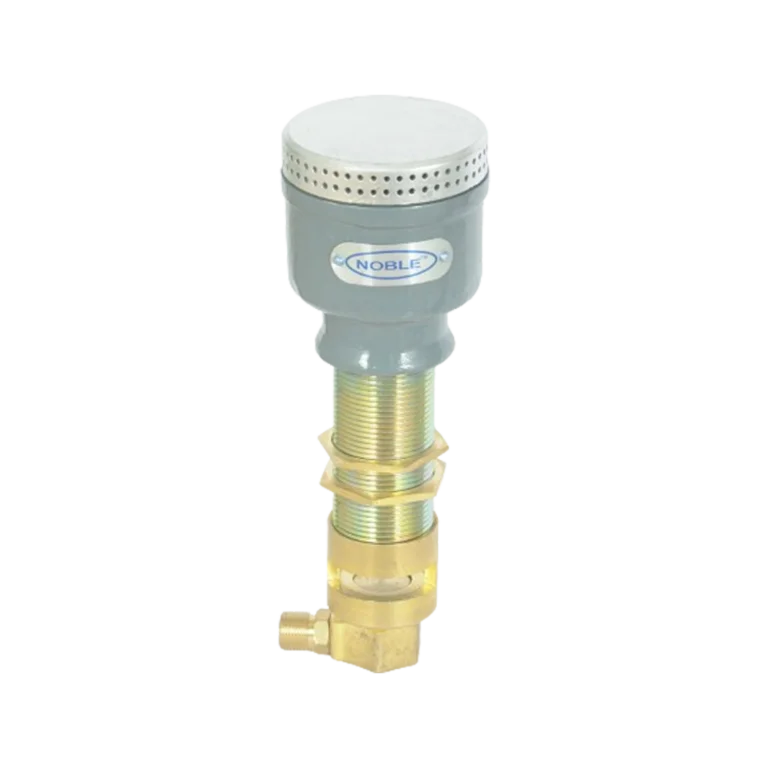

M – 35 BURNER
