T - 35 N BURNER

T – 35 N BURNER

Categories LPG Burners, LPG Burners & Components, T - Burner

Additional information

These burners are recommended to be used at a pressure of 0.3 kg/cm² (4.5 PSIG), however, this may be varied by ± 25% the heat output being varied accordingly.

Additional information

Model Number	T 35 N
Material	CAST IRON
Head Diameter	70	MM	2.800	INCH
Total Length	90	MM	3.600	INCH
Optimum Working Pressure	0.3	KG/CM3	4.5	PSIG
Consumption Per Hour	1.58	KGS	3.5	LBS
Rated Heat Output	17,650	KCAL/HR	70,000	BTU/HR
Gas	LPG / NATURAL GAS

Related Products

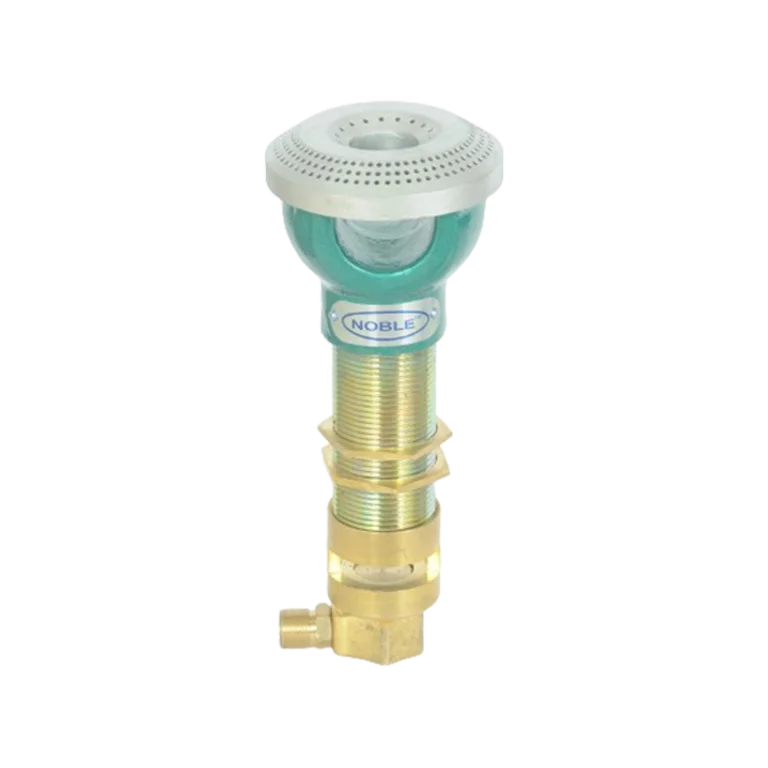

G – 9 BURNER

G – Burner, LPG Burners, LPG Burners & Components

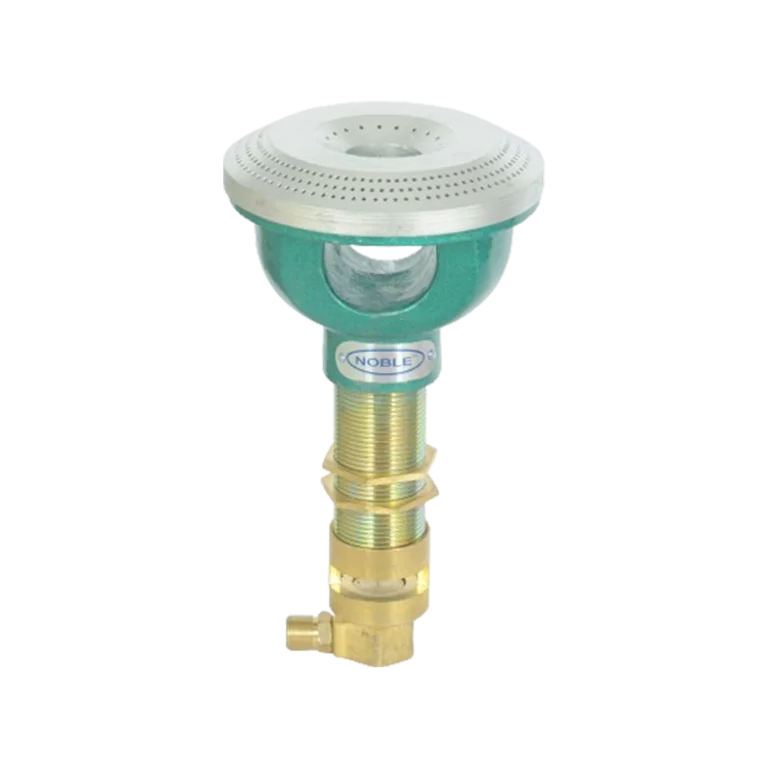

G-11 BURNER

G – Burner, LPG Burners, LPG Burners & Components

G-12 BURNER

G – Burner, LPG Burners, LPG Burners & Components

T – 35 U BURNER

LPG Burners, LPG Burners & Components, T – Burner

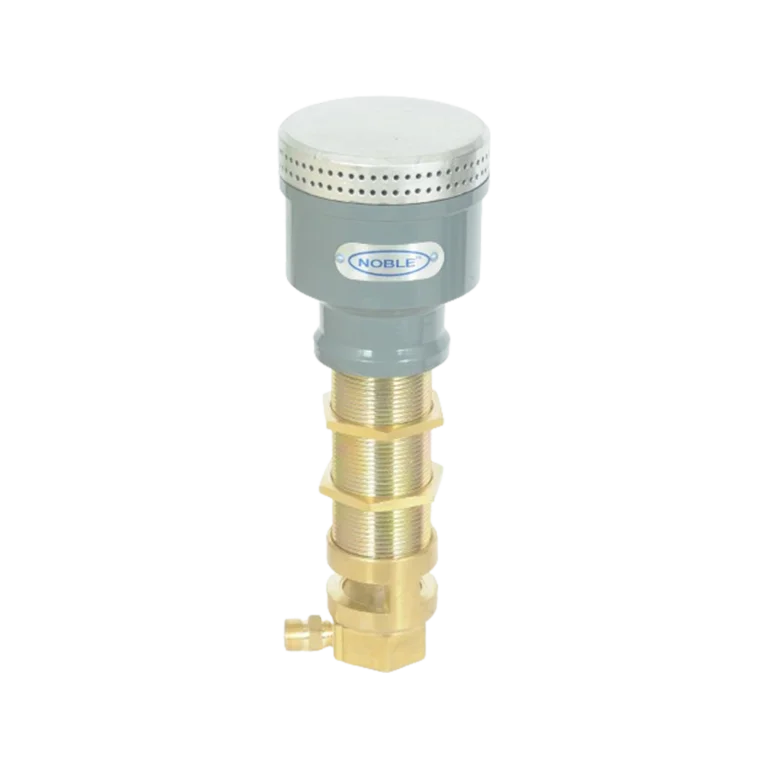

M – 50 BURNER

LPG Burners, LPG Burners & Components, M – Burner

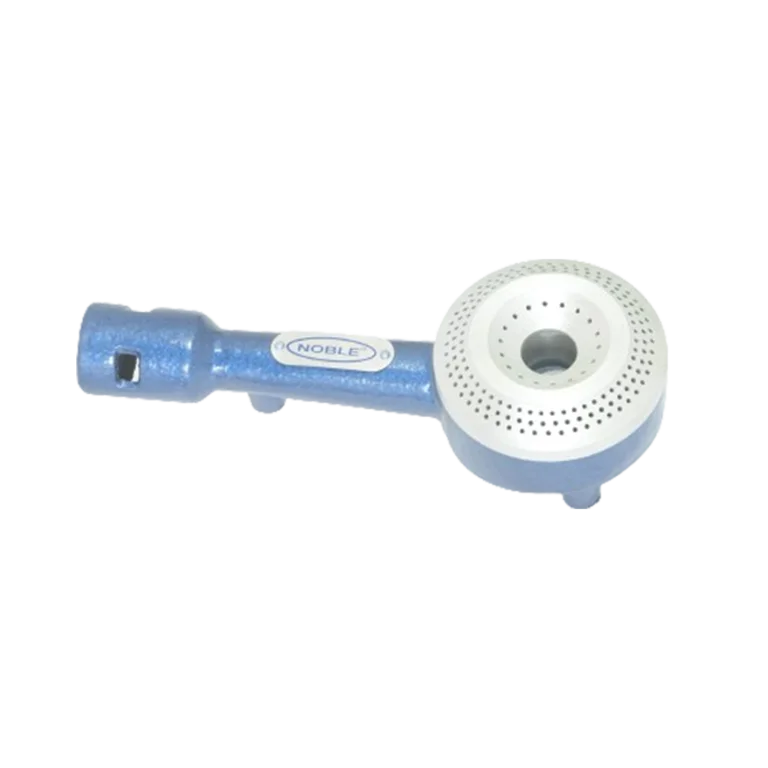

M-2H BOTTOM W/O LEG BURNER
